Need more space? - 24/11/2011 |

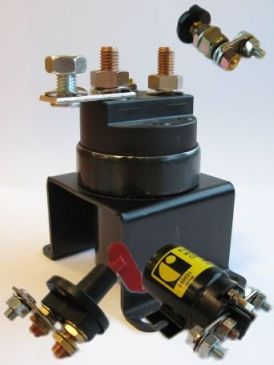

For any situation, if you need to separate or to move the connections from the main studs, Electromecanica Cormar now offers new sets to move away the main studs of any battery main switches or to allow some more connections.
Available with M8 studs, reference 520026, and with M10 studs, reference 520027.
|
| |
|
 |
New Battery Main Switch with locking system! - 24/11/2011 |

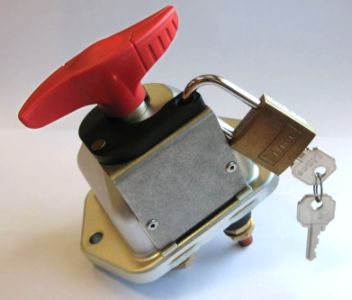

Following the needs from our customers, Electromecanica Cormar now propose a new version from our bipolar main switch reference 530113 equipped with a locking system in open position.
Compact and easy to use, it allows you to lock the main switch with a simple padlock when it is in open (OFF) position, giving an extra security when working on the vehicle. Also, you can use it as an anti-theft device.
Its reference in our catalogue is 530120.
|
| |
|
 |

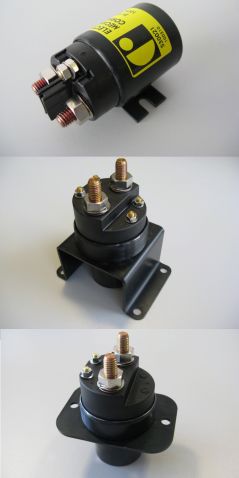

New range of remote controled electromagnetic Master Switches already available! - 28/09/2010 |
At Electromecanica Cormar, our new range 2010/2011 of remote controled electromagnetic switches is already available !
They are presented with a completely renewed design, but always maintaining the compatibility with the old range.
We achieved improving them further :
They are more compact, more powerful, stronger, with a much more modern design.
The "microswitch" technology permits us to improve greatly also their reliability throughout their working life.
The different available references are:
530000 for 12VDC/300A - U fixing - replaces DB0822
530001 for 24VDC/300A - U fixing - replaces DB1217
530002 for 12VDC/300A - U fixing with D+/NC aux. circuit - New!
530003 for 24VDC/300A - U fixing with D+/NC aux. circuit - New!
530010 for 12VDC/300A - Flat fixing - replaces DB0686
530011 for 24VDC/300A - Flat fixing - replaces DB0820
530012 for 12VDC/300A - Flat fixing with D+/NC aux. circuit- replaces DB0735
530013 for 24VDC/300A - Flat fixing with D+/NC aux. circuit - replaces DB1245
530014 for 12VDC/300A - Flat fixing with SM/NO aux. circuit - replaces DB0818
And last but not least, the new power relays, now working at maximum capacity in continuous duty:
530020 for 12VDC/150A - replaces RE1480 & RE1640
530021 for 24VDC/150A - replaces RE1470 & RE1660
For any question, details, data sheets, phone us at: +34 93 715 45 17 or send us a message using our website!
|
| |
|
 |
Renewed manual Switches available ! - 27/09/2010 |
Taking advantage of our new design department, we have renewed part of our range of manual battery main switches for the 2010/2011 range.
Maintaining the compatibility with older references, they now present a much more modern design, an improved reliability and strength, and a new ergonomic handle for an easier operation.
Are already available:
530100 for 12/24VDC/150A - Unipolar, red fixed handle - replaces DB1363
530101 for 12/24VDC/150A - Unipolar, zamak removable handle - replaces DB0927
530102 for 12/24VDC/150A - Unipolar, red fixed handle, white painting - replaces DB0048
530103 for 12/24VDC/150A - Unipolar, black fixed handle - replaces DB1543
530104 for 12/24VDC/150A - Unipolar, black fixed handle, white painting - replaces DB0049
530110 for 12/24VDC/250A - Bipolar, red fixed handle - replaces DB0015
530111 for 12/24VDC/250A - Bipolar, red fixed handle, white painting - replaces DB0047
530112 for 12/24VDC/250A - Bipolar, red fixed handle with SM/NO aux. circuit - replaces DB0019
530113 for 12/24VDC/250A - Bipolar, red fixed handle, white painting, SM/NO aux. circuit - new!
530114 for 12/24VDC/250A - Bipolar, red fixed handle, SM/NO FastOn Tyco aux. circuit - new!
530114 for 12/24VDC/250A - Bipolar, red fixed handle, white painting, SM/NO FastOn Tyco aux. circuit - new!
For any question, details, data sheets, phone us at: +34 93 715 45 17 or send us a message using our website!
|
| |
|
 |
New Battery Main Switch! - 01/06/2005 |
Electromecánica Cormar SA enlarge their range of Battery Main Switches with a new Bipolar type, ref. 500009.
We also supply a version "double positive pole" ( Nominal capacity 400A ) : ref.500048.
For more information, you can download the Technical Data Sheet from this page itself, or you may contact us through the enclosed from, or by Fax (+34 93 544 44 90).
|
|
|
|
